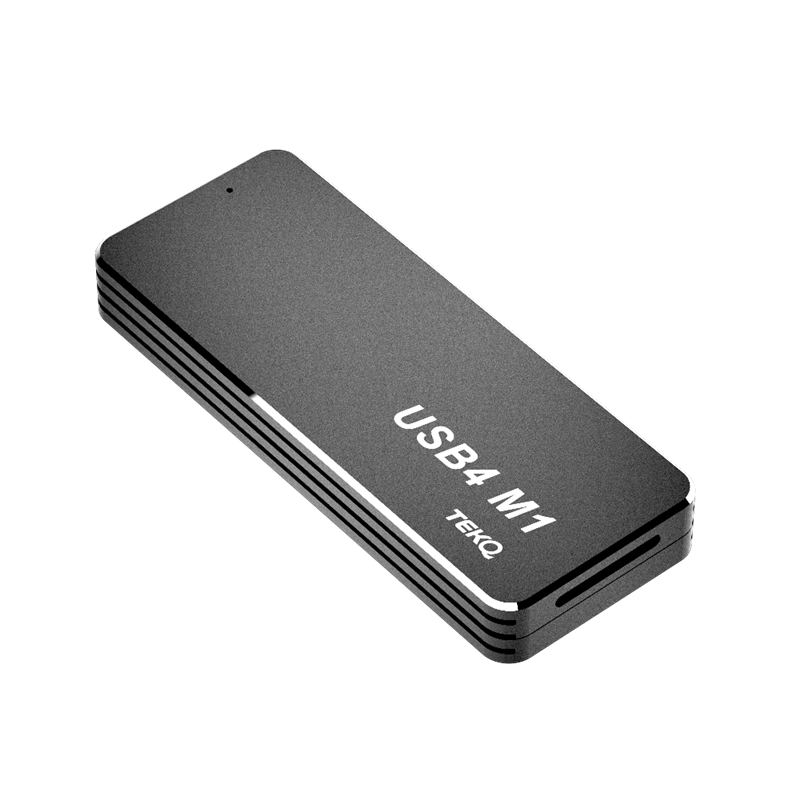

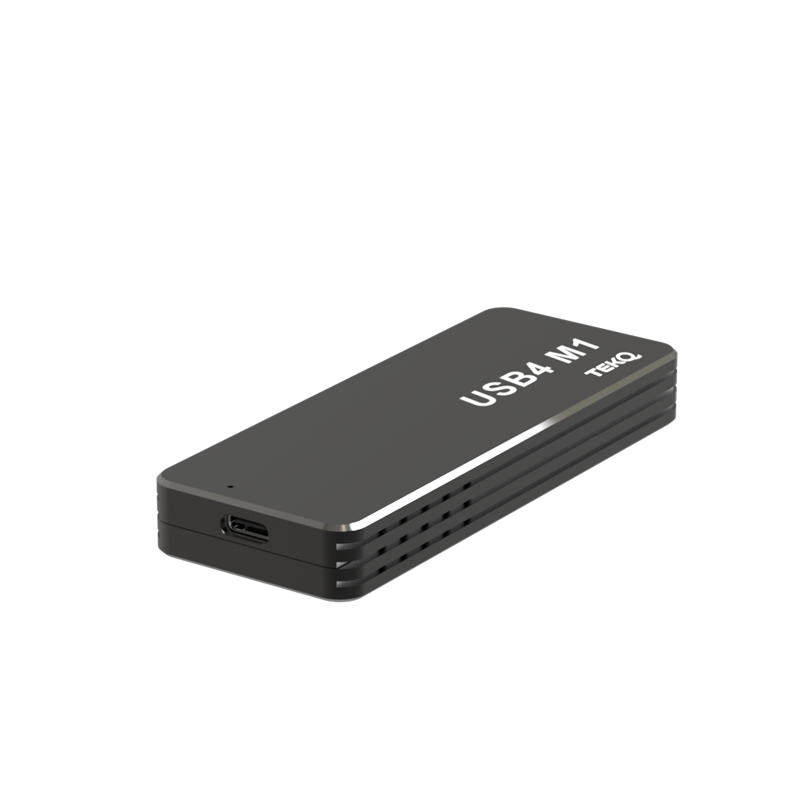

USB4 M1
No：AM-USB4M1-BK
USB SSD Drive Features:
1. ASM2464 Controller
2. High Speed Read Write Performance
3. Compatible with Windows/Mac Operating Systems
4. Supports USB4/USB3/USB2 (backward compatibility)
5. Compatible with Thunderbolt 4 and Thunderbolt 3 (Not compatible with Thunderbolt 2)
6. USB Hot Plug Support
7. Bus Power
8. Sturdy All-Aluminum CNC Housing
9. Built-in Active Fan
10. Includes USB Certified USB 4 Cable (240W/40Gbps)
11. SSD Support for up to 16TB
12. Dimension : 102(L) * 40(W) * 13(H) mm
13. Weiight : 92g
1. ASM2464 Controller
2. High Speed Read Write Performance
3. Compatible with Windows/Mac Operating Systems
4. Supports USB4/USB3/USB2 (backward compatibility)
5. Compatible with Thunderbolt 4 and Thunderbolt 3 (Not compatible with Thunderbolt 2)
6. USB Hot Plug Support
7. Bus Power
8. Sturdy All-Aluminum CNC Housing
9. Built-in Active Fan
10. Includes USB Certified USB 4 Cable (240W/40Gbps)
11. SSD Support for up to 16TB
12. Dimension : 102(L) * 40(W) * 13(H) mm
13. Weiight : 92g
Introduction
ASM2464 Controller Spec
### **General Features**
- USB4/Thunderbolt to PCI Express NVMe SSD Bridge.
- Integrated two USB 20Gbps PHYs.
- Integrated UFP CC Logic for USB Type-C cable orientation and detection.
- Integrated BMC PHY for PD fixed 5V UFP/Sink mode.
- 3.3V/1.9V/1.05V Power Supply.
- Support SPI interface with External ROM for Customized RAM Code.
- Support I2C and GPIOs and UART Interface.
- Local 25MHz Crystal.
### **Universal Serial Bus Features**
- Support up to USB4/Thunderbolt Gen3 x2 with USB 3.2 and USB 2.0 (backward compatibility).
- Support BOT and UAS Protocol.
- Support USB Link Power Management.
- Support USB Hot Plug.
- Support Spread Spectrum Clock Control.
- Support UNMAP Command Set.
- Support SCSI Vendor Specific Command Set.
- Compliant with Universal Serial Bus 4 (USB4 ®) Specification Rev. 1.0 (including Interoperability with Thunderbolt™ 3 (TBT3) Systems)
- Compliant with Universal Serial Bus Type-C Cable and Connector Specification Revision 2.1
- Compliant with Universal Serial Bus Power Delivery Specification Revision 3.1 Version 1.3
### **PCI Express Features**
- Support up to PCI Express Gen4 x4.
- Support PCI Express NVMe SSD.
- Support Spread Spectrum Clock Control.
- 100MHz Differential Reference Clock Output.
- Support Various Types of PCI Express Socket including M.2, U.2, and CFexpress.
- Support PCI Express Link Power Management.
- Compliant with PCI Express Base Specification Rev. 4.0
- Compliant with PCIe M.2 Specification Rev. 1.1
### **NVM Express Features**
- Support NVMe Power Management.
- Support NVMe: SCSI Translation Reference Rev. 1.5
- Support NVMe Error Reporting & Recovery.
- S.M.A.R.T Drive Monitoring.
- Compliant with NVM Express Base Specification Rev. 1.4c
