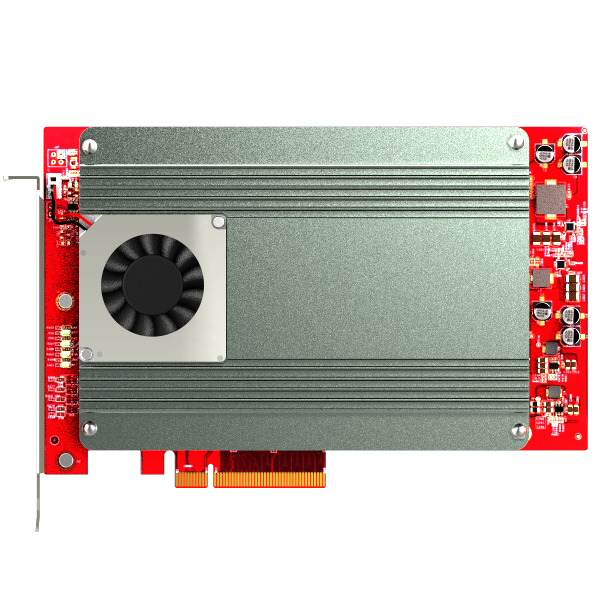

Databank M4
No：AM-DATABANK-M4
● Interface Chipset: PCIe 3.0 x 8 (PEX-8724)
● Compatible with PCIe 5.0 / 4.0 / 3.0 motherboards
● System support: macOS / Windows 10, Windows Server / Linux
● Internal interface: M.2-2280 (M Key)
● Maximum supported capacity: 32 TB (8 TB x 4)
● Plug-and-play, no driver required
● Product dimensions (L x W x H): 19.9cm x 2.2cm x 13.8cm
● Product weight: 350g Disk Array:
● JBOD: Use four hard disks independently
● RAID 0/1/5/10: Supports third-party SoftRAID software settings Note:
● Data transfer rates may vary depending on the SSD, CPU speed, RAID settings, and PCIe version used
● The performance of the Thunderbolt 3 PCIe expansion box is limited by the 2800MB/s Thunderbolt 3 PCIe bandwidth
● TRIM: Depends on the operating system
● Customizable laser-engraved logo available.
● Compatible with PCIe 5.0 / 4.0 / 3.0 motherboards
● System support: macOS / Windows 10, Windows Server / Linux
● Internal interface: M.2-2280 (M Key)
● Maximum supported capacity: 32 TB (8 TB x 4)
● Plug-and-play, no driver required
● Product dimensions (L x W x H): 19.9cm x 2.2cm x 13.8cm
● Product weight: 350g Disk Array:
● JBOD: Use four hard disks independently
● RAID 0/1/5/10: Supports third-party SoftRAID software settings Note:
● Data transfer rates may vary depending on the SSD, CPU speed, RAID settings, and PCIe version used
● The performance of the Thunderbolt 3 PCIe expansion box is limited by the 2800MB/s Thunderbolt 3 PCIe bandwidth
● TRIM: Depends on the operating system
● Customizable laser-engraved logo available.
